Our Color Range
Choose any powder coat frame and slat finish combination. Request a quote.
Skip to product information

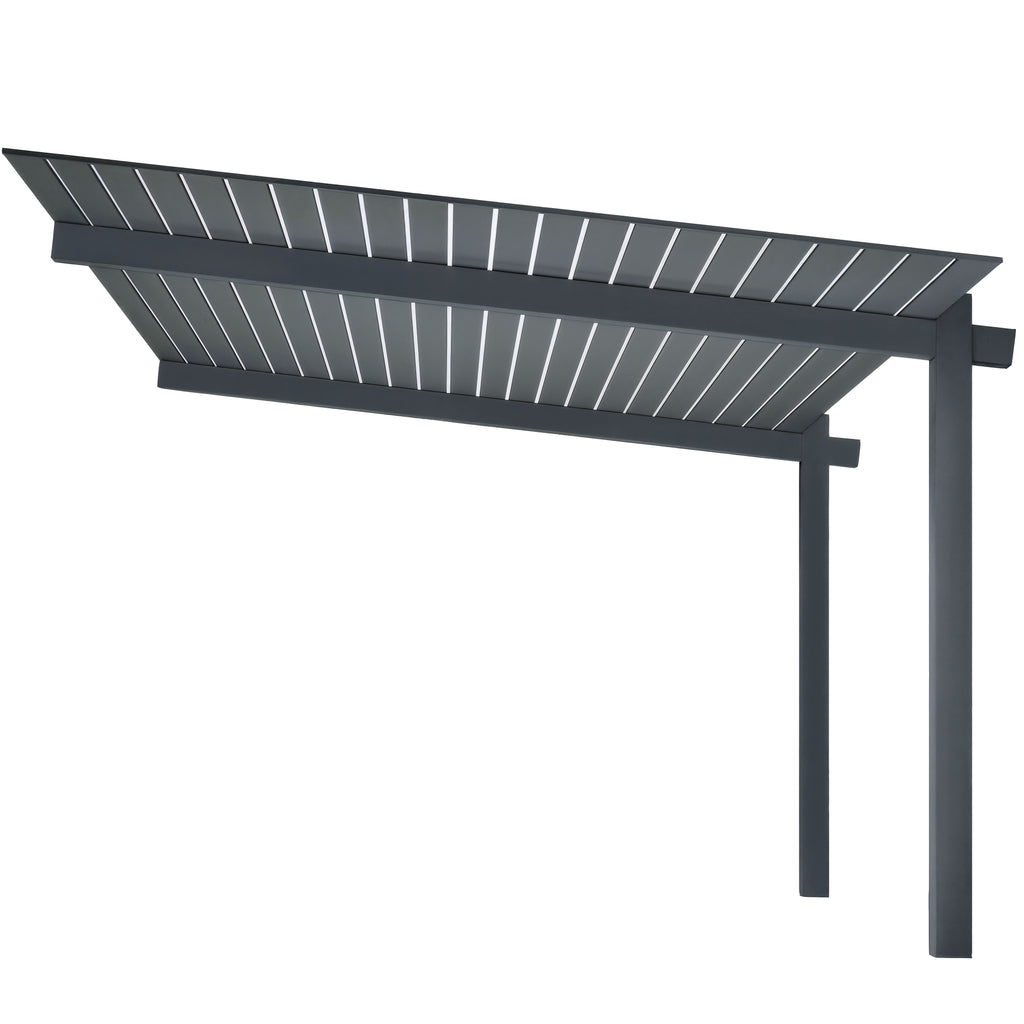

Ironstone Frame - Pergola Kit
$3,790.00
Shipping calculated at checkout.
Description
Built for strength. Engineered to last. Unlike flimsy DIY kits, this is a commercial-grade system that outperforms others on the market.
Designed for commercial and residential projects, The Cantilever is a pre-engineered aluminium pergola kit that makes your job easier. This patent-pending system gives you a premium finish.
It comes with everything you need: pre-cut outrails, posts, caps, fixings, and hardware, for easy assembly.
Customise your cantilever pergola by choosing any powder coat frame and your choice of timber slats or powder coat slats. Popular combinations are available to purchase, or request a custom quote for tailored sizes and finishes via the Trade Prices button.
Care
To maintain the beauty and integrity of your purchase, we recommend treating it with care. Simple maintenance practices, such as gentle washing and proper storage, can effectively preserve the longevity of your favorites. We encourage you to refer to the care instructions included with each item, designed to help you keep your purchase in top condition.
Design
Our dedication to excellence extends beyond materials; it encompasses the artistry and craftsmanship illustrated in every piece we create.
Complete Pergola Kit
Depth + Width Options
Easy To Install
Frequently asked questions
What is included in Eurowood Cantilever Kit?
The Eurowood Cantilever kit includes quality Australian posts, outrails , caps, locblocs available in your choice of powder coated finish.
Also included are galvanised sleeves, screws and bolts and your choice of colour matched or timber imaged roofing slats.
Everything is designed for a smooth, weld free assembly process with simple instructions to guide you through setup.
Can I customise the size of my Cantilever pergola?
Yes, while our kits come in standard sizes, pieces can be cut down on site to fit your space perfectly.
Please contact us if you have any specific requirement and we will advise if we can accommodate your request.
Fill out the quote request and add further information in the message box if required.
Do I need any special tools for assembly?
A licensed builder is recommended for installation. See our assembly page
Is the Eurowood Cantilever Cyclone Rated?
The Eurowood Cantilever is certified for Wind Regions A (max 6m width x 4m depth) and B (max 6m width x 3.5m depth).
Individual certification is required for Wind Region C.
Please get in touch if you require the engineering reports.
Can My Cantilever Be Installed next to a pool fenceline?
The posts for the Eurowood Cantilever are deemed non climbable, however pool compliance is council regulated and it is the responsibility of the owner to ensure current local council guidelines are adhered to.
What footings are required for the Cantilever?
Galvanized steel sleeves (supplied in kit) into 800x800x800mm concrete footings (into natural ground – NOT FILL).
Also available for purchase separately, hot dipped galvanized steel base plates 300x300mm to be secured onto a minimum 100mm concrete slab.
IS COUNCIL APPROVAL REQUIRED
We recommend contacting your local council for regulations and compliance within your area.
Whether you need council approval for your Cantilever depends on several factors such as:
- The size and height of the structure
- Location on your property
- Local council regulations
In general a Cantilever with an open slat roof can be installed within 400mm from the fence line.
Please refer to general guidelines for each state:
Where are your products manufactured?
Our products are manufactured in Brisbane using premium grade Australian aluminium.
Multiple Options
Carports, Pools, Backyards,
No Welding
A simple systme a licensed builder can assemble.
Low Maintenance
Easy upkeep.
